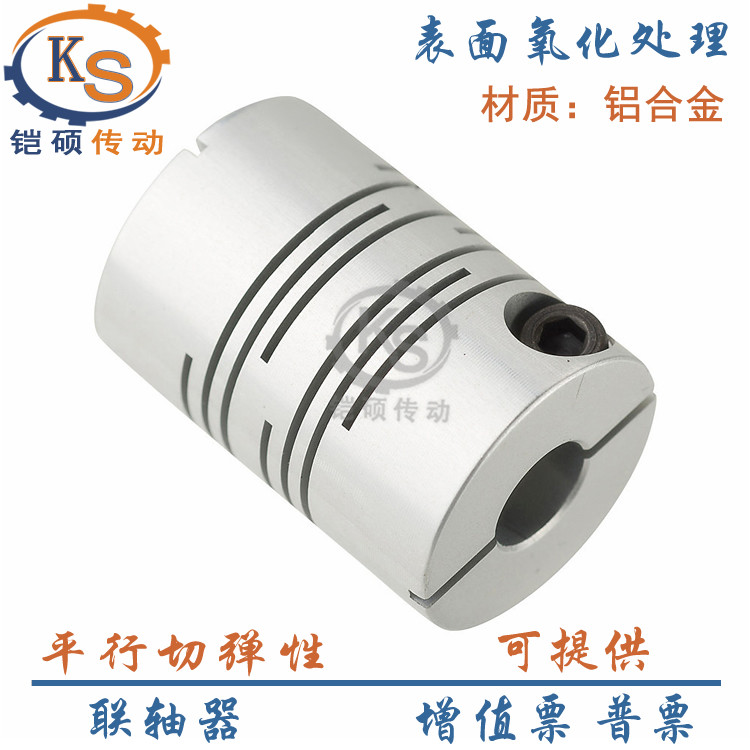

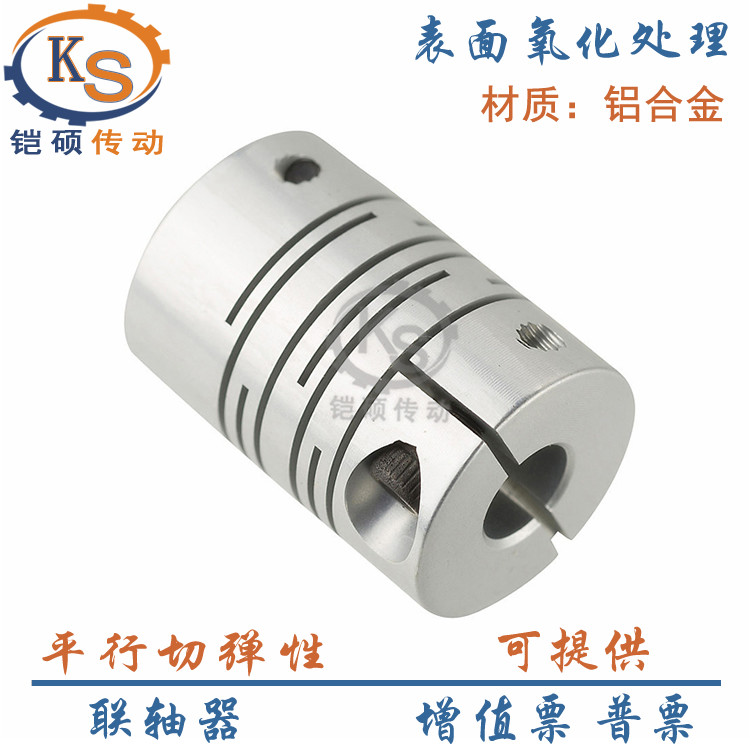

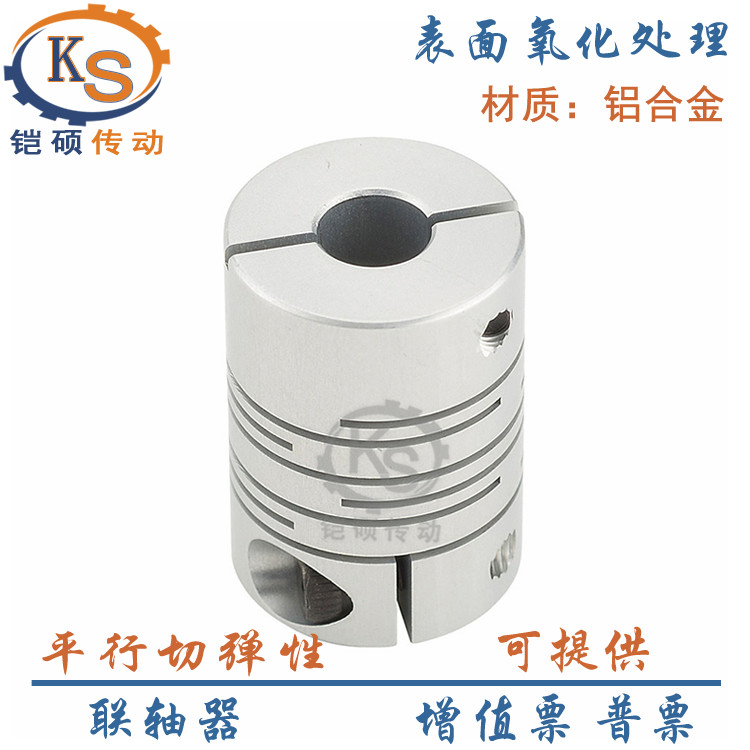

Coupling CPLCN groove type CPLCX clamped LK2 servo motor parallel cut seam elastic coupling

Wholesale Price:

Color classification:

Outer Diameter - Length - Maximum Hole, Note Aperture Size
C16-24- Max Hole 6
C19-25 - Max Hole 10
C25-30 - Max Hole 12
C30-35 - Max Hole 16
C30-40 - Max Hole 16
C32-40 - Max Hole 16
C40-50 - Max. 17
C40-56 - Max Hole 17
C50-51 - Max Hole 20
C50-70 - Max hole 20
C63-90 - Max. 25
The aperture at both ends can be processed according to the requested opening
Processing keyway
LK2-C075 - Max. well 6.35
LK2-C100 - Max hole 10
LK2-C112 - Max well 12.7
LK2-C150 - Max well 15
LK2-C200 - Max hole 19
